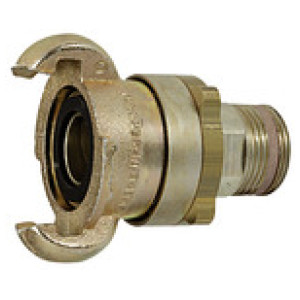

Varnostna čeljustna spojka z zunanjim  navojem, R 1, DN 17 slika
Varnostna čeljustna spojka z zunanjim  navojem, R 1, DN 17 slika

* slike so simbolične

Varnostna čeljustna spojka z zunanjim navojem, R 1, DN 17

SKU: 107878RIE
EAN: 4047322282024

Safety jaw coupling with exterior thread, R 1, DN 17, Malleable cast iron, Operating pressure max. 16 bar, Temp. -40 °C to 95 °C

Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.

Easy to couple, secured against accidental opening: just screw the ring tight after coupling!

- Robust couplings with malleable iron head, steel stem with special profile,

zinc plated and yellow chromated

- Chrome VI-free, with double safety lock

- Large bore for increased flow rate

Čas dobave: Predvidoma 3 - 5 dni
41,93 €
Primerjaj z ostalimi
Šifra Navoj DN a/f [mm] L [mm] Zaloga Cena Nakup Natisni
107876RIE G 1/2 13 24 69.2
Čas dobave: Predvidoma 3 - 5 dni
35,16 € Natisni
107875RIE G 3/8 10 24 67.7
Čas dobave: Predvidoma 3 - 5 dni
35,16 € Natisni
107877RIE G 3/4 17 24 70.2
Čas dobave: Predvidoma 3 - 5 dni
35,16 € Natisni
107878RIE R 1 17 36 82.2
Čas dobave: Predvidoma 3 - 5 dni
41,93 € Natisni

Opis

Safety jaw coupling with exterior thread, R 1, DN 17, Malleable cast iron, Operating pressure max. 16 bar, Temp. -40 °C to 95 °C

Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.

Easy to couple, secured against accidental opening: just screw the ring tight after coupling!

- Robust couplings with malleable iron head, steel stem with special profile,

zinc plated and yellow chromated

- Chrome VI-free, with double safety lock

- Large bore for increased flow rate

Tehnični podatki in specifikacije

DN 17
Max. obratovalni tlak [bar] 16
Min. delovna temperatura [°C] -40
Max. delovna temperatura [°C] 95
Navoj R 1
a/f [mm] 36
Tesnilo NBR
Material Malleable iron
Razdalja med objemkami [mm] 42
L [mm] 82.2
H [mm] 63.0
