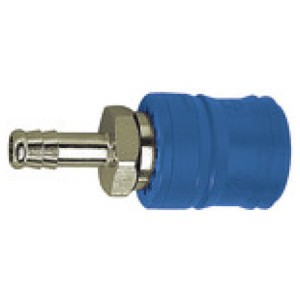

Varnostna spojka I.D. 7.4KE tip,poniklj. Med.I.D. 13
SKU: 107564RIE
EAN: 4047322062640
Safety coupling I.D. 7.4, KE type, nickel-plated brass, Sleeve I.D. 13, Operating pressure max. 12 bar, Temp. -20 °C to 60 °C

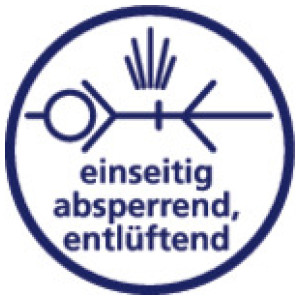

One-hand air relief couplings with double locking system.
Connection: Similar to standard couplings, simply by pressing the plug into the coupling.
Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side and inside the hose. The second locking mechanism is released by actuating the sleeve again. The coupling can now be disconnected safely.
This system meets the requirements of ISO 4414 and is BIA-compliant (BIA = industrial safety institute).
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107560RIE | I.D. 6 | Čas dobave 3 - 5 dni | 32,95 € |  | |
| 107562RIE | I.D. 9 | Čas dobave 3 - 5 dni | 32,95 € | | |
| 107564RIE | I.D. 13 | Čas dobave 3 - 5 dni | 32,95 € | | |
| 107563RIE | I.D. 10 | Čas dobave 3 - 5 dni | 32,95 € | | |
| 107561RIE | I.D. 8 | Čas dobave 3 - 5 dni | 32,95 € | |
Opis
Safety coupling I.D. 7.4, KE type, nickel-plated brass, Sleeve I.D. 13, Operating pressure max. 12 bar, Temp. -20 °C to 60 °C
One-hand air relief couplings with double locking system.
Connection: Similar to standard couplings, simply by pressing the plug into the coupling.
Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side and inside the hose. The second locking mechanism is released by actuating the sleeve again. The coupling can now be disconnected safely.
This system meets the requirements of ISO 4414 and is BIA-compliant (BIA = industrial safety institute).
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
Tehnični podatki in specifikacije
| DN | 7.4 |
| Povezava | I.D. 13 |
| a/f [mm] | 22 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Delovni tlak | 12 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 1300 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Zatič | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Sprostitveni rokav | Plastic |
| Ventil | Brass |
| Dolžina [mm] | 71.2 |
