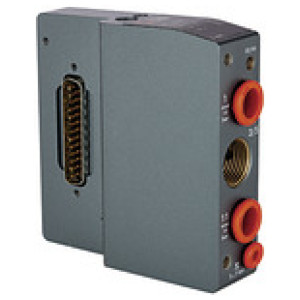

Vhod. plošča za vent. terminal HDM zun. zračni nadzor, Multipol
SKU: 106671RIE
EAN: 0227301200
Input plate for valve terminal HDM, with external control air, Two-supply circuit, Multipol, Working pressure vacuum up to 10 bar
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Obrestno financiranje
- 10,11 € x 12 mesecev
- 19,77 € x 6 mesecev
- 39,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Ffunkcija | Povezava | Min. obratovalni tlak [bar] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 106670RIE | Standard, with interior control air | Multi-pole | 3 | 7 | Čas dobave: Predvidoma 3 - 5 dni | 105,37 € |  | |
| 106673RIE | with external control air, vacuum up to 10 bar | With integrated Profibus DP | -1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 825,72 € | | |
| 106672RIE | Standard, with interior control air | With integrated Profibus DP | 3 | 7 | Čas dobave: Predvidoma 3 - 5 dni | 839,54 € | | |
| 106671RIE | with external control air, two-supply circuit, Multipol, vacuum up to 10 bar | Multi-pole | -1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 107,91 € | |
Opis
Input plate for valve terminal HDM, with external control air, Two-supply circuit, Multipol, Working pressure vacuum up to 10 bar
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Min. obratovalni tlak [bar] | -1 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Vhodna moč | 0.6 W per pilot |
| Ročno upravljanje | latching |
| Poskusno | Max. 16 (e.g. 16 spring return valves) |
| IP zaščita | IP 65 |
| Ffunkcija | with external control air, two-supply circuit, Multipol, vacuum up to 10 bar |
| Povezava | Multi-pole |
| Material | aluminium |
