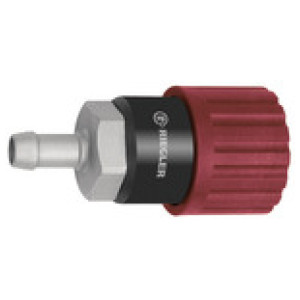

Vrtljiva varnosta spojka I.D. 6, ISO 6150 C, Fi 13
SKU: 141746RIE
EAN: 4047322566667
Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 13, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Navojni kos: Galvanised steel
Ohišje: Steel, QPQ treated
Povezava: I.D. 13
Rokav: Polyamide, red
Srednje: Compressed air, gases
Ventil: Polyphenylene sulfide (PPS)
Vtični profil: acc. ISO 6150 C
Vzmet: Stainless steel
Pretok: 630 l/min (air)
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 141746RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 141745RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 141743RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 141744RIE | I.D. 8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 13, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
Tehnični podatki in specifikacije
| DN | 6 |
| Povezava | I.D. 13 |
| a/f [mm] | 22 |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | NBR |
| Pretok | 630 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Polyamide, red |
| Navojni kos | Galvanised steel |
| Ventil | Polyphenylene sulfide (PPS) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Srednje | Compressed air, gases |
| Vtični profil | acc. ISO 6150 C |
| Dolžina [mm] | 70.0 |
