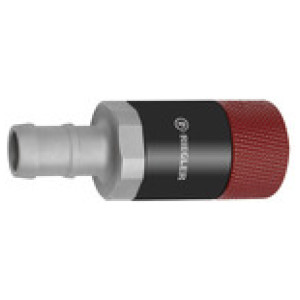

Vrtljiva varnostna I.D. 11, ISO 6150 C, Fi 16 slika
Vrtljiva varnostna I.D. 11, ISO 6150 C, Fi 16 slika

* slike so simbolične

Vrtljiva varnostna I.D. 11, ISO 6150 C, Fi 16

SKU: 141783RIE
EAN: 4047322564908

Swivel safety coupling I.D. 11, ISO 6150 C, Steel, Sleeve I.D. 16, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C

High quality, robust and long lifetime one hand rotation secure coupling.

A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, mining.

Čas dobave: Predvidoma 3 - 5 dni
97,04 €
ali od 17,76 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 17,76 € x 6 mesecev
  • 35,12 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
141784RIE I.D. 19
Čas dobave: Predvidoma 3 - 5 dni
97,04 € Natisni
141782RIE I.D. 13
Čas dobave: Predvidoma 3 - 5 dni
97,04 € Natisni
141783RIE I.D. 16
Čas dobave: Predvidoma 3 - 5 dni
97,04 € Natisni

Opis

Swivel safety coupling I.D. 11, ISO 6150 C, Steel, Sleeve I.D. 16, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C

High quality, robust and long lifetime one hand rotation secure coupling.

A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, mining.

Tehnični podatki in specifikacije

DN 11
Povezava I.D. 16
a/f [mm] 38
Delovni tlak max. 25 bar / max. 16 bar when attaching / detaching
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 100
Ohišje Steel, QPQ treated
Tesnilo NBR
Pretok 2100 l/min (air)
Vzmet Stainless steel
Rokav Galvanised steel, painted red
Navojni kos Galvanised steel
Ventil Brass with a bare metal surface
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Srednje Compressed air, gases
Vtični profil acc. ISO 6150 C
Dolžina [mm] 108.0
