* slike so simbolične

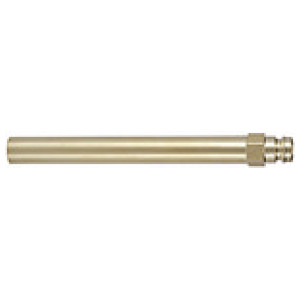

Vtična cev DN 9,Medenina 2.0401, zunajna cev Ø 14 mm, dolžina 15
SKU: 107986RIE
EAN: 4047322259293
Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Šifra | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
107986RIE | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,09 € | | |
107987RIE | 300.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € | |
Opis
Plug nipple pipe DN 9, Brass 2.0401, Pipe exterior Ø 14 mm, AF 15, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 15 |
Srednje | Air, water, oil, vacuum |
Material | Brass 2.0401 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 160 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 160 |
Tesnilo | FPM (PTFE coated) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Pritrdilni obroč | Stainless steel |
Dolžina [mm] | 150.0 |
a/f [mm] | 15 |
O.D. cev [mm] | 14 |
