* slike so simbolične
vtični konektor kot PP, podpira 32 mm, cev zunanja Ø 32
SKU: 110347RIE
EAN: 4047322275026

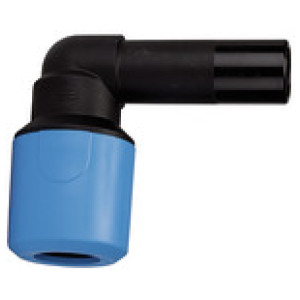

Plug-in angle connector PP, Supports 32 mm, for hose exterior Ø 32 mm, Working pressure max. 12 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Šifra | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|
110347RIE | Čas dobave: Predvidoma 3 - 5 dni | 41,81 € | |
Opis
Plug-in angle connector PP, Supports 32 mm, for hose exterior Ø 32 mm, Working pressure max. 12 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Max. delovni tlak [bar] | 12 |
Max. delovna temperatura [°C] | 20 |
Za cevi O.D. [mm] | 32 |

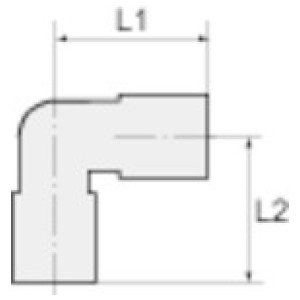

L1 [mm] | 105.3 |
L2 [mm] | 96.0 |
Šoba [mm] | 32 |
Material | Polypropylene, glass fibre-reinforced (PP) |
