* slike so simbolične
Vtični L nast.-konekt. Metallica, zun. Ø 8 mm
SKU: 108984RIE
EAN: 4047322279130

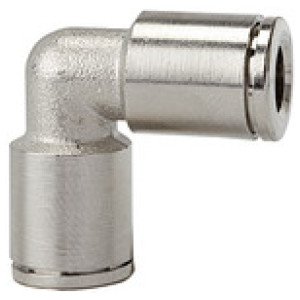

Push-in L-connector »metallica«, for hose exterior Ø 8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
5,47 €

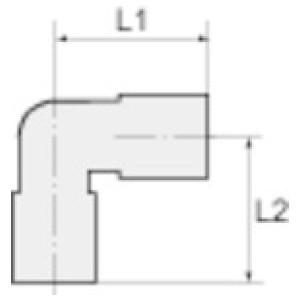

| Šifra | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108986RIE | 12 | 27.5 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,78 € |  | |
| 108985RIE | 10 | 25.0 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,97 € | | |
| 136781RIE | 16 | 33.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,88 € | | |
| 108983RIE | 6 | 20.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,75 € | | |
| 108982RIE | 4 | 17.5 | 17.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,31 € | | |
| 108987RIE | 14 | 31.0 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,61 € | | |
| 108984RIE | 8 | 23.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,47 € | |
Opis
Push-in L-connector »metallica«, for hose exterior Ø 8, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Union elbows |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 23.0 |
| L2 [mm] | 23.0 |
| Material | Nickel-plated brass |
