Vtični L nast.-prik. Click-klak zun. Ø 10 mm slika
Vtični L nast.-prik. Click-klak zun. Ø 10 mm slika

* slike so simbolične

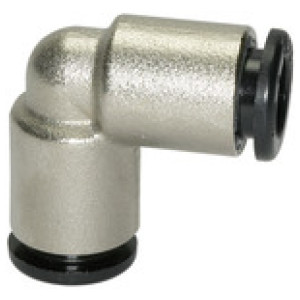

Vtični L nast.-prik. Click-klak zun. Ø 10 mm

SKU: 108757RIE
EAN: 4047322208994

Push-in L-connector »click-clock« for hose exterior Ø 10, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Push-in L-connector »click-clock« for hose exterior Ø 10, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Priporočena cev PA, PU
Rokav Hostaform
Vpenjalni obroč Stainless steel
Za cevi O.D. [mm] 10

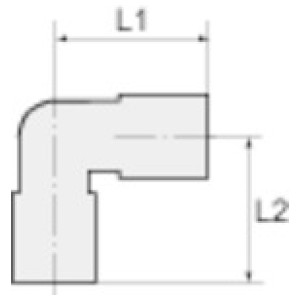

L1 [mm] 23.3
L2 [mm] 23.3
Material Nickel-plated brass
