* slike so simbolične
Vtični L nast.-prik. zun. Ø 14, legirano jeklo
SKU: 135267RIE
EAN: 4047322494731

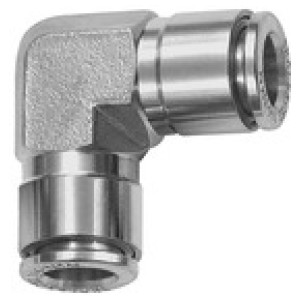

Push-in L-connector, for hose exterior Ø 14 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Obrestno financiranje
- 11,88 € x 12 mesecev
- 23,25 € x 6 mesecev
- 45,98 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

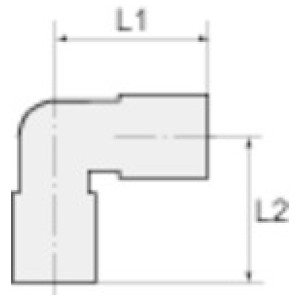

Šifra | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
135266RIE | 12 | 19 | 26.7 | 26.7 | Čas dobave: Predvidoma 3 - 5 dni | 80,02 € | ||
135268RIE | 16 | 24 | 30.0 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 151,02 € | ||
135263RIE | 6 | 12 | 22.0 | 22.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,12 € | ||
135262RIE | 4 | 10 | 20.3 | 20.3 | Čas dobave: Predvidoma 3 - 5 dni | 37,48 € | ||
135264RIE | 8 | 14 | 23.2 | 23.2 | Čas dobave: Predvidoma 3 - 5 dni | 42,43 € | ||
135265RIE | 10 | 16 | 24.3 | 24.3 | Čas dobave: Predvidoma 3 - 5 dni | 55,03 € | ||
135267RIE | 14 | 22 | 28.7 | 28.7 | Čas dobave: Predvidoma 3 - 5 dni | 126,67 € |
Opis
Push-in L-connector, for hose exterior Ø 14 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 20 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 150 |
Primerni materiali za cevi | PVDF, PTFE, PA, PU |
Za cevi O.D. [mm] | 14 |
L1 [mm] | 28.7 |
L2 [mm] | 28.7 |
a/f [mm] | 22 |
Material | Stainless steel 1.4404 |
