* slike so simbolične

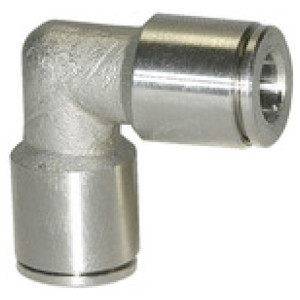

Vtični L nastavek-priključek za cev zunanji Ø 10 mm
SKU: 110434RIE
EAN: 4047322092029
Push-in L-connector, for hose exterior Ø 10 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Čas dobave 3 - 5 dni
Povpraševanje
Vtični L nastavek-priključek za cev zunanji Ø 10 mm
Material: Stainless steel 1.4404
Primerni materiali za cevi: PVDF, PTFE, PA, PU
Primerni materiali za cevi: PVDF, PTFE, PA, PU

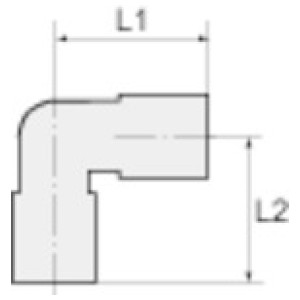

| Šifra | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110434RIE | 10 | 25.0 | 25.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 110435RIE | 12 | 27.0 | 27.0 | Čas dobave 3 - 5 dni | 92,83 € | | |
| 110431RIE | 4 | 17.0 | 17.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110432RIE | 6 | 20.0 | 20.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110433RIE | 8 | 21.0 | 21.0 | Čas dobave 3 - 5 dni | 50,19 € | |
Opis
Push-in L-connector, for hose exterior Ø 10 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 15 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 25.0 |
| L2 [mm] | 25.0 |
| Material | Stainless steel 1.4404 |
