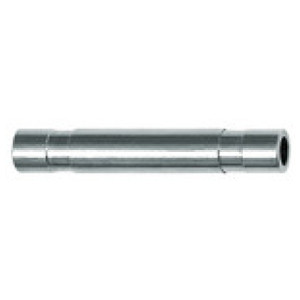

Vtični nastavek »Click-klak«, za cev zunanji Ø 5 mm
SKU: 108784RIE
EAN: 4047322385008
Plug nipple »click-clock«, for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
108789RIE | 14 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,73 € | | |
108788RIE | 12 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,26 € | | |
108787RIE | 10 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,65 € | | |
108783RIE | 4 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,23 € | | |
108786RIE | 8 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,35 € | | |
108785RIE | 6 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,23 € | | |
108784RIE | 5 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,77 € | |
Opis
Plug nipple »click-clock«, for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
Serija | click-clock |
Min. delovni tlak [bar] | -0.99 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Za cevi O.D. [mm] | 5 |

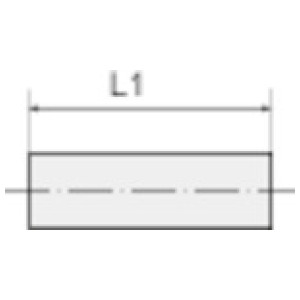

L1 [mm] | 34.0 |
Material | Nickel-plated brass |
