* slike so simbolične

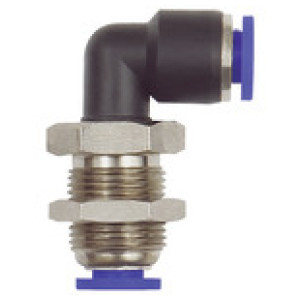

Vtični pregradni L-priključek »Blue serija" mini, M10x1
SKU: 109090RIE
EAN: 4047322385596
Push-in bulkhead L-connector »Blue Series« mini, M10x1, for hose exterior Ø 4 mm, pmax 10 barPush-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Čas dobave: Predvidoma 3 - 5 dni
8,26 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109089RIE | M8x0.75 | 3 | 10 | 12.0 | 21.6 | Čas dobave: Predvidoma 3 - 5 dni | 7,81 € |  | |
| 109091RIE | M12x1.0 | 6 | 12 | 16.0 | 28.8 | Čas dobave: Predvidoma 3 - 5 dni | 9,30 € | | |
| 109090RIE | M10x1.0 | 4 | 12 | 15.7 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,26 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Tehnični podatki in specifikacije
| Serija | Blue series mini |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | M10x1.0 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 15.7 |
| L2 [mm] | 22.5 |
| a/f [mm] | 12 |
| Material | Plastic and nickel-plated brass |
