* slike so simbolične
Vtični prik. 45 °, 10 mm Blue serija" cev Ø 8
SKU: 135766RIE
EAN: 4047322499026

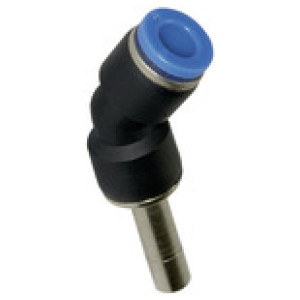

Push-in connector 45°, Plug nipple 10 mm »Blue Series«, for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
15,80 €

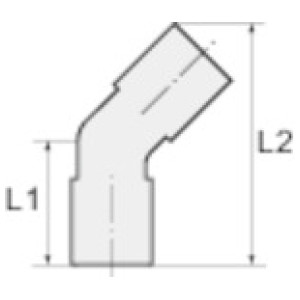

| Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135767RIE | 10 | 12 | 50.0 | 76.5 | Čas dobave: Predvidoma 3 - 5 dni | 18,41 € |  | |
| 135765RIE | 6 | 8 | 37.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,79 € | | |
| 135764RIE | 4 | 6 | 35.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,71 € | | |
| 135766RIE | 8 | 10 | 44.5 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,80 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 44.5 |
| L2 [mm] | 65.0 |
| Priključek [mm] | 10 |
| Material | Plastic and nickel-plated brass |
