* slike so simbolične
Vtični prik. 45 °, 6 mm Blue serija" cev Ø 6
SKU: 109885RIE
EAN: 4047322197571

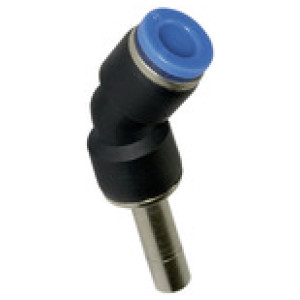

Push-in connector 45°, Plug nipple 6 mm »Blue Series«, for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
2,79 €

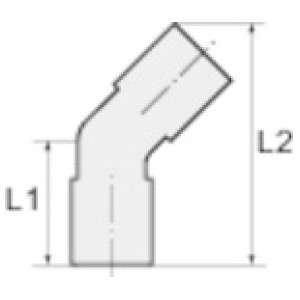

| Šifra | Priključek [mm] | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 109886RIE | 8 | 8 | 20.5 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,73 € |  | |
| 109885RIE | 6 | 6 | 17.4 | 51.2 | Čas dobave: Predvidoma 3 - 5 dni | 2,79 € | | |
| 109884RIE | 4 | 4 | 16.2 | 46.7 | Čas dobave: Predvidoma 3 - 5 dni | 2,29 € | | |
| 109887RIE | 10 | 10 | 23.1 | 68.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,01 € | | |
| 109888RIE | 12 | 12 | 26.0 | 76.1 | Čas dobave: Predvidoma 3 - 5 dni | 8,37 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 17.4 |
| L2 [mm] | 51.2 |
| Priključek [mm] | 6 |
| Material | Plastic and nickel-plated brass |
