* slike so simbolične

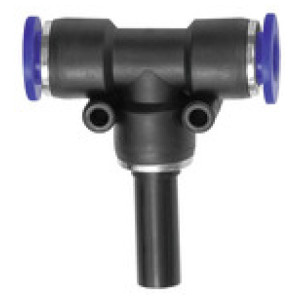

Vtični T-konekt., 10 mm Blue serija, cev Ø 8
SKU: 135785RIE
EAN: 4047322499217
Push-in T-connector, Plug nipple 10 mm »Blue Series«, red., unequal, for hose exterior Ø8 mm, pmax short term 15 bar plasticPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
5,20 €

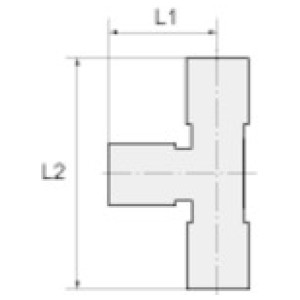

Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
135788RIE | 12 | 16 | 28.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,43 € | ||
135783RIE | 6 | 8 | 19.0 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,60 € | ||
135786RIE | 8 | 12 | 21.7 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,49 € | ||
135787RIE | 10 | 12 | 27.4 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,49 € | ||
135782RIE | 4 | 6 | 18.5 | 34.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,43 € | ||
135784RIE | 6 | 10 | 19.0 | 38.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,20 € | ||
135785RIE | 8 | 10 | 21.7 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,20 € |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Za cevi O.D. [mm] | 8 |
L1 [mm] | 21.7 |
L2 [mm] | 41.5 |
Priključek [mm] | 10 |
Material | Plastic and nickel-plated brass |
