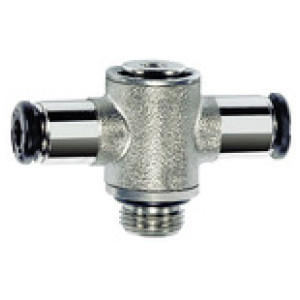

 Vtični T-okovja »Click-klak«, vrtljivi, M7 O. slika
 Vtični T-okovja »Click-klak«, vrtljivi, M7 O. slika

* slike so simbolične

Vtični T-okovja »Click-klak«, vrtljivi, M7 O.

SKU: 108677RIE
EAN: 4047322210195

Push-in T-fitting »click-clock«, rotating, M7 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Push-in T-fitting »click-clock«, rotating, M7 o., for hose exterior Ø 6 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Priporočena cev PA, PU
Rokav Hostaform
Vpenjalni obroč Stainless steel
Navoj M7
Za cevi O.D. [mm] 6

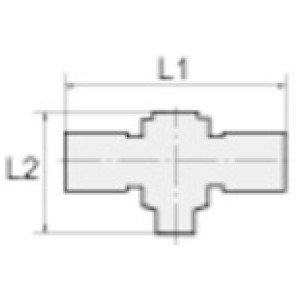

L1 [mm] 47.0
L2 [mm] 18.5
a/f [mm] 3
Material Nickel-plated brass
