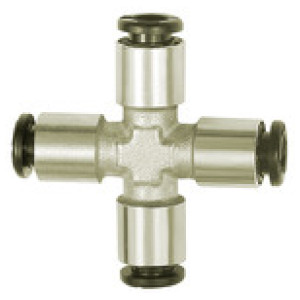

Vtični X-priključek »klik-urni« Za cev zunanji Ø 8 mm
SKU: 108770RIE
EAN: 4047322384667
Push-in X-connector »click-clock« for hose exterior-Ø 8, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
16,84 €

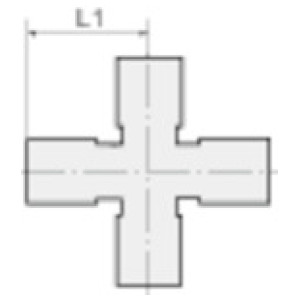

| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 108768RIE | 4 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 14,32 € |  | |
| 108769RIE | 6 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 16,02 € | | |
| 108770RIE | 8 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 16,84 € | |
Opis
Push-in X-connector »click-clock« for hose exterior-Ø 8, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 25.4 |
| Material | Nickel-plated brass |
