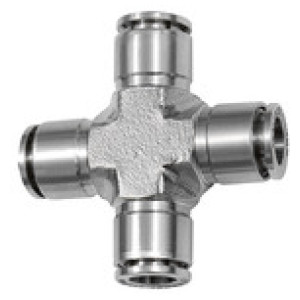

Vtični X-priključek Za cev zunanji Ø 6, legirano jeklo slika
Vtični X-priključek Za cev zunanji Ø 6, legirano jeklo slika

* slike so simbolične

Vtični X-priključek Za cev zunanji Ø 6, legirano jeklo

SKU: 135277RIE
EAN: 4047322494830

Push-in X-connector, for hose exterior Ø 6 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404

For use in more aggressive environments and corrosive media.

The suitability test for the individual application is the user's responsibility.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Push-in X-connector, for hose exterior Ø 6 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404

For use in more aggressive environments and corrosive media.

The suitability test for the individual application is the user's responsibility.

Tehnični podatki in specifikacije

Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 20
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 150
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 150
Primerni materiali za cevi PVDF, PTFE, PA, PU
Za cevi O.D. [mm] 6

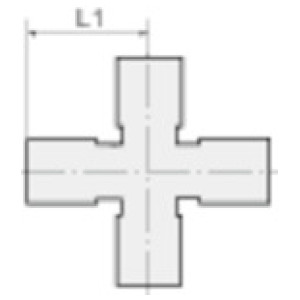

L1 [mm] 22.0
Material Stainless steel 1.4404
