* slike so simbolične
Y-priključek POM, za cev zunanjega premera 12 mm
SKU: 136492RIE
EAN: 4047322505918

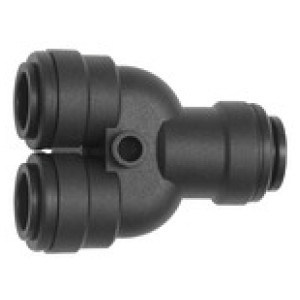

Y-connection POM, for hose exterior Ø 12 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.

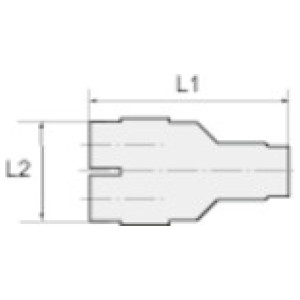

| Šifra | Max. delovni tlak [bar] | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 136491RIE | 10 | 10 | 39.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,37 € |  | |
| 136490RIE | 16 | 8 | 41.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,12 € | | |
| 136493RIE | 10 | 15 | 54.8 | 70.3 | Čas dobave: Predvidoma 3 - 5 dni | 11,58 € | | |
| 136489RIE | 16 | 6 | 26.8 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,16 € | | |
| 136488RIE | 16 | 4 | 28.5 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,95 € | | |
| 136492RIE | 10 | 12 | 44.2 | 55.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,15 € | |
Opis
Y-connection POM, for hose exterior Ø 12 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 55.5 |
| L2 [mm] | 44.2 |
| Material | Acetal polymer (POM) |
