Zad.splakovalni filter z regul.jem tlaka, preizk. na DVGW, R 1
SKU: 101424RIE
EAN: 4047322011877

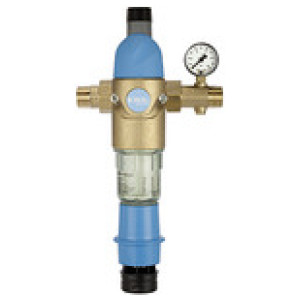

Back flush filter with pressure regulator, for potable water, DVGW tested, incl. pressure gauge, 90 µm to 110 µm, R 1
Combined station for filtering and regulating the pressure of drinking and domestic water in addition to well, process and cooling water for once-through cooling systems, consisting of a diaphragm pressure regulator with a pressure-reduced single-seated valve and a back-flushing filter.
The filter candle must be cleaned manually at regular intervals by back-flushing (flushing out dirt particles). Integrated back-flushing element with suction elements, back-flushing lever, wing lever for back-flushing element, hose connection for flushing water.
Obrestno financiranje
- 12,06 € x 48 mesecev
- 15,41 € x 36 mesecev
- 22,14 € x 24 mesecev
- 42,39 € x 12 mesecev
- 82,92 € x 6 mesecev
- 164,00 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Pretok KVS vrednost [m³/h] | DN | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 101423RIE | R 3/4 | 3 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 452,72 € |  | |
| 101425RIE | R 1 1/4 | 4 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 550,05 € | | |
| 101424RIE | R 1 | 3.5 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 452,72 € | |
Opis
Back flush filter with pressure regulator, for potable water, DVGW tested, incl. pressure gauge, 90 µm to 110 µm, R 1
Combined station for filtering and regulating the pressure of drinking and domestic water in addition to well, process and cooling water for once-through cooling systems, consisting of a diaphragm pressure regulator with a pressure-reduced single-seated valve and a back-flushing filter.
The filter candle must be cleaned manually at regular intervals by back-flushing (flushing out dirt particles). Integrated back-flushing element with suction elements, back-flushing lever, wing lever for back-flushing element, hose connection for flushing water.
Tehnični podatki in specifikacije
| Navoj | R 1 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Brass |
| Cedilna košarica | Impact-resistant plastic |
| Pretok KVS vrednost [m³/h] | 3.5 |
| DN | 25 |

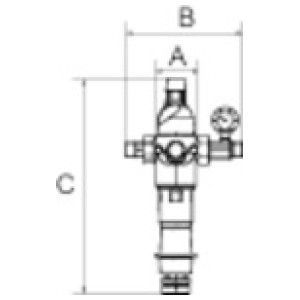

| A [mm] | 79.7 |
| B [mm] | 213.0 |
| C [mm] | 392.8 |
| Min. sobna temperatura [°C] | 5 |
| Max. sobna temperatura [°C] | 40 |
| Min. temperatura vode [°C] | 5 |
| Max. temperatura vode [°C] | 30 |
| Spodnja širina mrežice [µm] | 110 |
| Merjenje pretoka | At pressure drop Δp = 0.2 bar |
| Min. krmilno območje [bar] | 2 |
| Max. krmilno območje [bar] | 6 |
