* slike so simbolične

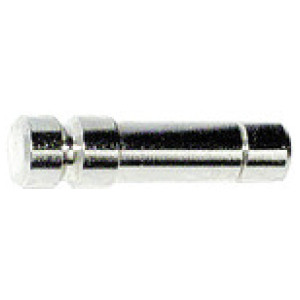

Zaklepni čep »value line«, za za cev 12 mm, nikljana medenina
SKU: 116303RIE
EAN: 4047322184038
Locking plug »value line«, Supports 12 mm, Working pressure -0.98 to 16 bar, temperature -20 °C to 80 °C, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Only recommended for use in combination with quick-connect fittings of the »value line«series. The suitability test for use with other series is the responsibility of the user.
Povpraševanje
Material: Nickel-plated brass
Serija: value line
Tesnilo: NBR, silicone-free
| Šifra | Šoba [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 116299RIE | 4 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116302RIE | 10 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116301RIE | 8 | 30.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116303RIE | 12 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116300RIE | 6 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 129490RIE | 14 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Locking plug »value line«, Supports 12 mm, Working pressure -0.98 to 16 bar, temperature -20 °C to 80 °C, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Only recommended for use in combination with quick-connect fittings of the »value line«series. The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |

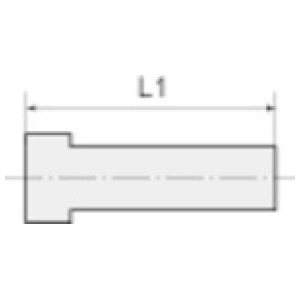

| L1 [mm] | 37.0 |
| Šoba [mm] | 12 |
| Material | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 16 |
