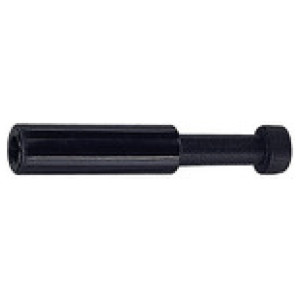

Zaporni čep »Blue serija«, vtični nastavek 10 mm
SKU: 109929RIE
EAN: 4047322028820
Locking plug »Blue Series«, plug nipple 10 mm, pmax short term 15 bar, PlasticPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
1,54 €

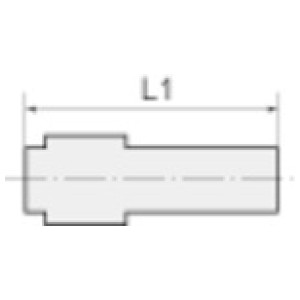

| Šifra | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 109928RIE | 8 | 36.6 | Čas dobave: Predvidoma 3 - 5 dni | 1,31 € |  | |
| 135835RIE | 16 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,69 € | | |
| 109927RIE | 6 | 33.6 | Na zalogi | 1,18 € | | |
| 109926RIE | 4 | 30.2 | Na zalogi | 1,18 € | | |
| 109930RIE | 12 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,71 € | | |
| 109929RIE | 10 | 40.1 | Na zalogi | 1,54 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Srednje | Compressed air, neutral and safe gases and liquids |
| L1 [mm] | 40.1 |
| Priključek [mm] | 10 |
| Material | Plastic and nickel-plated brass |
