Zašč. nav. spojka s tipko I.D. 7.4,vrteče1.4404I.D. 6
SKU: 107586RIE
EAN: 4047322349895

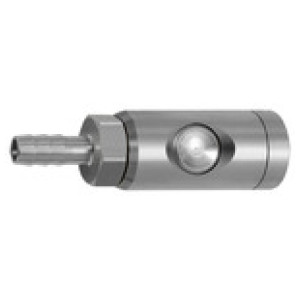

Pushbutton safety coupling I.D. 7.4, rotating, Stainless steel 1.4404, Sleeve I.D. 6, Operating pressure max. 12 bar
"High-quality, robust and durable, one-hand quick disconnect safety couplings.

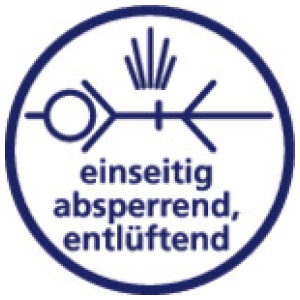

When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"
Obrestno financiranje
- 10,24 € x 36 mesecev
- 14,71 € x 24 mesecev
- 28,17 € x 12 mesecev
- 55,10 € x 6 mesecev
- 108,97 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107587RIE | I.D. 9 | Čas dobave: Predvidoma 3 - 5 dni | 300,58 € |  | |
| 107588RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | 300,58 € | | |
| 107586RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | 300,58 € | |
Opis
Pushbutton safety coupling I.D. 7.4, rotating, Stainless steel 1.4404, Sleeve I.D. 6, Operating pressure max. 12 bar
"High-quality, robust and durable, one-hand quick disconnect safety couplings.
When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Tehnični podatki in specifikacije
| DN | 7.4 |
| Max. obratovalni tlak [bar] | 12 |
| Povezava | I.D. 6 |
| a/f [mm] | 21 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Ohišje | Stainless steel 1.4404 |
| Tesnilo | FKM |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 150 |
| Pretok | 1600 l/min (air) |
| Notranji deli | Stainless steel 1.4404 |
| Navojni kos | Stainless steel 1.4404 |
| Ventil | Stainless steel 1.4404 |
| Gumb | Stainless steel 1.4404 |
| Dolžina [mm] | 88.5 |
