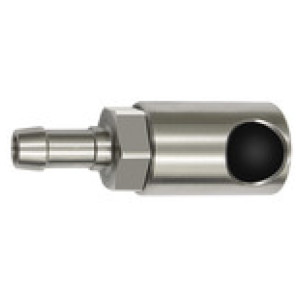

Zašč. nav. spojka s tipko I.D. 8, ISO 6150 C, Fi 13 slika
Zašč. nav. spojka s tipko I.D. 8, ISO 6150 C, Fi 13 slika

* slike so simbolične

Zašč. nav. spojka s tipko I.D. 8, ISO 6150 C, Fi 13

SKU: 141961RIE
EAN: 4047322567053

Pushbutton safety coupling I.D.8, ISO 6150 C, Stainless steel, Sleeve I.D.13, Operating pressure max. 16 bar, Temp. -20°C to 200°C

"

High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.

When pushed for the first time the coupling is vented, the plug remains securely in the coupling.

After a second push the plug is released.

This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.

The safety version meets ISO standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.

"
Čas dobave: Predvidoma 3 - 5 dni
83,26 €
ali od 15,19 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 15,19 € x 6 mesecev
  • 30,05 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
141962RIE I.D. 16
Čas dobave: Predvidoma 3 - 5 dni
83,26 € Natisni
141959RIE I.D. 9
Čas dobave: Predvidoma 3 - 5 dni
83,26 € Natisni
141958RIE I.D. 8
Čas dobave: Predvidoma 3 - 5 dni
83,26 € Natisni
141960RIE I.D. 10
Čas dobave: Predvidoma 3 - 5 dni
83,26 € Natisni
141961RIE I.D. 13
Čas dobave: Predvidoma 3 - 5 dni
83,26 € Natisni

Opis

Pushbutton safety coupling I.D.8, ISO 6150 C, Stainless steel, Sleeve I.D.13, Operating pressure max. 16 bar, Temp. -20°C to 200°C

"

High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.

When pushed for the first time the coupling is vented, the plug remains securely in the coupling.

After a second push the plug is released.

This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.

The safety version meets ISO standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.

"

Tehnični podatki in specifikacije

DN 8
Max. obratovalni tlak [bar] 16
Povezava I.D. 13
a/f [mm] 25
Merjenje pretoka at 6 bar and Δp = 1 bar
Vtični profil acc. ISO 6150 C
Ohišje Stainless steel
Tesnilo FKM
Pretok 2080 l/min (air)
Navojni kos Galvanised steel
Ventil Brass
Gumb Stainless steel
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 200
Vzmet Stainless steel
Dolžina [mm] 86.0
