* slike so simbolične
Čeljustna spojka s cevnim priklj. I.D. 25 (1")Varnostne ovratnice
SKU: 107850RIE
EAN: 4047322258753

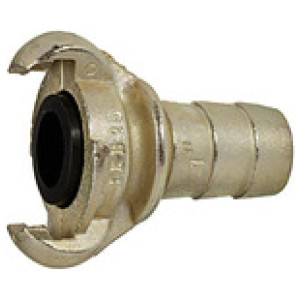

Jaw coupling with hose connection, I.D. 25 (1"), with safety collar, Malleable cast iron, galvanised and yellow passivated
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave: Predvidoma 3 - 5 dni
11,22 €
| Šifra | DN | Za cev I.D. | Varnostni ovratnik | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107849RIE | 15 | 19 (3/4") | 28.5 | 75.1 | Čas dobave: Predvidoma 3 - 5 dni | 7,45 € |  | |
| 107848RIE | 8.5 | 13 (1/2") | 25 | 69.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,28 € | | |
| 107850RIE | 19 | 25 (1") | 38 | 75.1 | Čas dobave: Predvidoma 3 - 5 dni | 11,22 € | |
Opis
Jaw coupling with hose connection, I.D. 25 (1"), with safety collar, Malleable cast iron, galvanised and yellow passivated
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 19 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | 25 (1") |
| L [mm] | 75.1 |
| H [mm] | 63.0 |
| Varnostni ovratnik | 38 |
