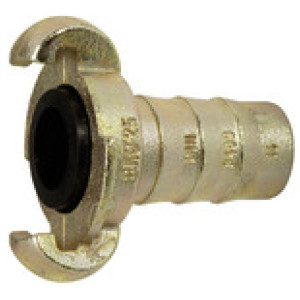

Čeljustna spojka s cevnim priključkom, I.D. 25 (1"), DN 19
SKU: 107843RIE
EAN: 4047322258531
Jaw coupling with hose connection, I.D. 25 (1"), Malleable cast iron, galv. / yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave: Predvidoma 3 - 5 dni
8,84 €
| Šifra | DN | Za cev I.D. | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107841RIE | 8.5 | 13 (1/2") | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,71 € |  | |
| 107842RIE | 15 | 19 (3/4") | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,17 € | | |
| 107840RIE | 7 | 10 (3/8") | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,19 € | | |
| 107844RIE | 25 | 32 (1 1/4") | 88.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,52 € | | |
| 107843RIE | 19 | 25 (1") | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,84 € | |
Opis
Jaw coupling with hose connection, I.D. 25 (1"), Malleable cast iron, galv. / yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 19 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | 25 (1") |
| L [mm] | 70.0 |
| H [mm] | 63.0 |
