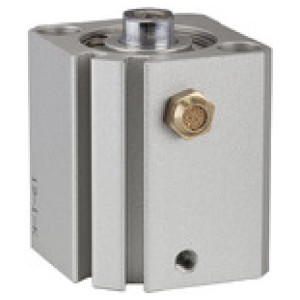

Cilinder z kratkim hodom, enosmerni, bat Ø 25, hod 15, M5x0,8
SKU: 115182RIE
EAN: 4047322328821
Short stroke cylinder »ASQ« single-acting, Magnet, Piston Ø 25, Stroke 15, M5x0,8, Working pressure 2-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Povpraševanje
Batnica: Steel, thick-chromed
Batnica IT: M6x1.0
Cushioning: non-cushioned

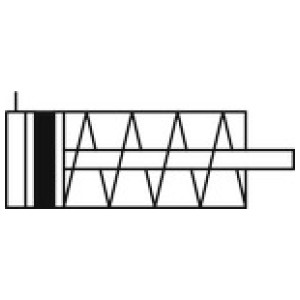

Ffunkcija: single-acting
Gewinde Kolbenstange: female piston rod
Magnet: with magnet
Ovoj: Aluminium
Povezava: M5x0.8
Serija: ASQ series
Starting position: pressureless in the retracted position
| Šifra | Bat | Batnica IT | Povezava | Vrsta | Batnica Ø [mm] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 115166RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 5 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 115167RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115168RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 15 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115169RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 20 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115170RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 5 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115171RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115172RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 15 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115173RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 20 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115174RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 5 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 115175RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Short stroke cylinder »ASQ« single-acting, Magnet, Piston Ø 25, Stroke 15, M5x0,8, Working pressure 2-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Serija | ASQ series |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Min. delovni tlak [bar] | 2 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Aluminium |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 15 |
| Povezava | M5x0.8 |
| Batnica | Steel, thick-chromed |
| Batnica IT | M6x1.0 |
| Batnica Ø [mm] | 12 |
| Bat | Aluminium |
| Vrsta | 5 |
