Filter reg. »Stinard«Kov. pos.40 µmVel. 4G 1
SKU: 100939RIE
EAN: 4047322112154

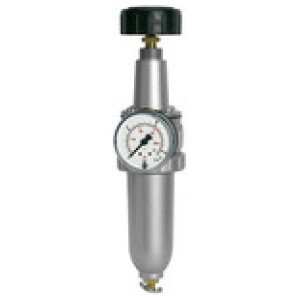

Filter regulator »Standard«, Metal container and pressure gauge, 40 µm, Size 4, G 1, Input pressure max. 25 bar, 0.5 - 16 bar

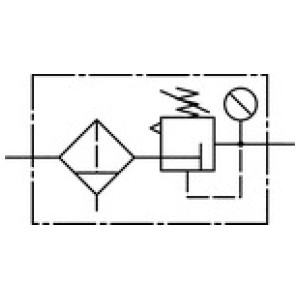

Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter reg. »Stinard«Kov. pos.40 µmVel. 4G 1
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Manuel
Ohišje: Aluminium, painted silver
Posoda: Metal container
Serija: Standard

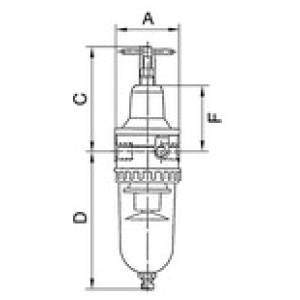

A [mm]: 125.0
F [mm]: 145.0
C [mm]: 190.6
D [mm]: 264.0
Odtok kondenzata: Manuel
Ohišje: Aluminium, painted silver
Posoda: Metal container
Serija: Standard
A [mm]: 125.0
F [mm]: 145.0
C [mm]: 190.6
D [mm]: 264.0
Aktivni filtri - 0
| Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | A [mm] | F [mm] | C [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100934RIE | G 1/4 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 133.5 | 900 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100935RIE | G 3/8 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 133.5 | 900 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100936RIE | G 3/8 | Die-cast zinc, painted silver | 2 | 11 | 40 | 70.0 | 76.5 | 120.5 | 161.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100937RIE | G 1/2 | Die-cast zinc, painted silver | 3 | 14 | 5 | 82.0 | 83.0 | 130.0 | 172.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100938RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 264.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100939RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 264.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 174096RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 265.6 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 174097RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 265.6 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 8 od 8 zapisov
Opis
Filter regulator »Standard«, Metal container and pressure gauge, 40 µm, Size 4, G 1, Input pressure max. 25 bar, 0.5 - 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 25 |
| Velikost | 4 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Pretok [l/min] | 7000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |
| Odtok kondenzata | Manuel |
| DN | 25 |
| Ohišje | Aluminium, painted silver |
| Rang filtra [µm] | 40 |
| Posoda | Metal container |
| A [mm] | 125.0 |
| C [mm] | 190.6 |
| D [mm] | 264.0 |
| F [mm] | 145.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
