* slike so simbolične
Filter regulator »multifix«, 5 µm, Velikost 4, G 1, 0.5 - 10 bar
SKU: 133108RIE
EAN: 4047322475969

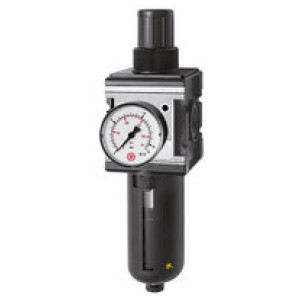

Filter regulator »multifix« with PC container, Protective cage and press. gauge, 5 µm, Size 4, G 1, Input pressure max. 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter regulator »multifix«, 5 µm, Velikost 4, G 1, 0.5 - 10 bar
Merjenje pretoka: At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
Serija: multifix
Vzmet pokrova motorja: POM-brass
Max. notranja poraba zraka: 1,5 l/min (depending on secondary pressure)
C [mm]: 125.0
D [mm]: 190.0
B [mm]: 315.0
Pretok [l/min]: 12000
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
Serija: multifix
Vzmet pokrova motorja: POM-brass
Max. notranja poraba zraka: 1,5 l/min (depending on secondary pressure)
C [mm]: 125.0
D [mm]: 190.0
B [mm]: 315.0
Pretok [l/min]: 12000
| Šifra | Navoj | Ohišje | Max. notranja poraba zraka | Velikost | Rang filtra [µm] | DN | A [mm] | C [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133107RIE | G 3/4 | Die-cast aluminium | 1,5 l/min (depending on secondary pressure) | 4 | 5 | 20 | 85.0 | 125.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100492RIE | G 1 | Aluminium | 0,5 l/min (depending on secondary pressure) | 5 | 40 | 25 | 100.0 | 128.0 | 253.8 | 381.8 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100490RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 100488RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 100491RIE | G 3/4 | Die-cast zinc | 3 | 5 | 20 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 100489RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 133108RIE | G 1 | Die-cast aluminium | 1,5 l/min (depending on secondary pressure) | 4 | 5 | 25 | 85.0 | 125.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter regulator »multifix« with PC container, Protective cage and press. gauge, 5 µm, Size 4, G 1, Input pressure max. 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM-brass |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 1,5 l/min (depending on secondary pressure) |
| Odtok kondenzata | Semi-automatic |
| Pretok [l/min] | 12000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| DN | 25 |
| Ohišje | Die-cast aluminium |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 85.0 |
| B [mm] | 315.0 |
| C [mm] | 125.0 |
| D [mm] | 190.0 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
