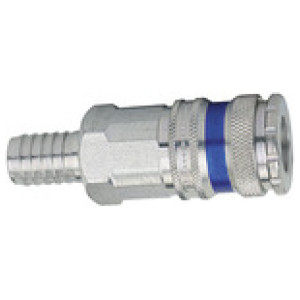

Hitre spojke I.D. 10, Težka obilka,Fi cevi I.D. 10
SKU: 107469RIE
EAN: 4047322273640
Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, Sleeve I.D. 10, Operating pressure max. 16 bar
One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.
Suitable for all applications with an above-average air requirement and characterised by extreme conditions!
Obrestno financiranje
- 18,83 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107469RIE | I.D. 10 | 77.3 | Čas dobave: Predvidoma 3 - 5 dni | 51,67 € |  | |
| 107470RIE | I.D. 13 | 75.8 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, Sleeve I.D. 10, Operating pressure max. 16 bar
One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.
Suitable for all applications with an above-average air requirement and characterised by extreme conditions!
Tehnični podatki in specifikacije
| DN | 10 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | I.D. 10 |
| a/f [mm] | 24 |
| Dolžina [mm] | 77.3 |
| Tesnilo | NBR |
| Pretok | 3900 l/min (air) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Material | Nickel-plated steel, nickel-plated brass |
