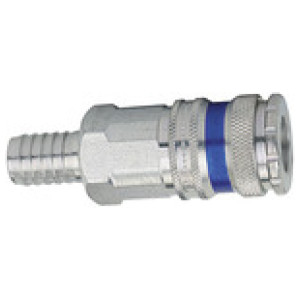

Hitre spojke I.D. 10, Težka obilka,Fi cevi I.D. 13 slika
Hitre spojke I.D. 10, Težka obilka,Fi cevi I.D. 13 slika

* slike so simbolične

Hitre spojke I.D. 10, Težka obilka,Fi cevi I.D. 13

SKU: 107470RIE
EAN: 4047322273657

Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, Sleeve I.D. 13, Operating pressure max. 16 bar

One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.

Suitable for all applications with an above-average air requirement and characterised by extreme conditions!

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
107469RIE I.D. 10 77.3
Čas dobave: Predvidoma 3 - 5 dni
51,67 € Natisni
107470RIE I.D. 13 75.8
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni

Opis

Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, Sleeve I.D. 13, Operating pressure max. 16 bar

One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.

Suitable for all applications with an above-average air requirement and characterised by extreme conditions!

Tehnični podatki in specifikacije

DN 10
Max. obratovalni tlak [bar] 16
Povezava I.D. 13
a/f [mm] 24
Dolžina [mm] 75.8
Tesnilo NBR
Pretok 3900 l/min (air)
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 100
Material Nickel-plated steel, nickel-plated brass
