Kamlok hitra spojka,thread, A tip, Alu, G 3

SKU: 108072RIE
EAN: 4047322403603

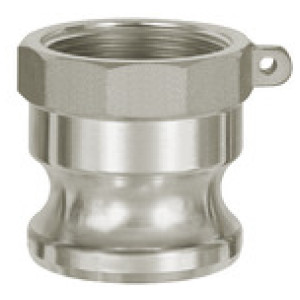

Kamlok quick-connect plug with interior thread, A type, Aluminium, G 3, Plug Ø 92 mm, Pressure max. 16 bar, Temp. max. 68 °C

Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.

A male part and a female part are joined together by shifting the handles.

There is no need to turn the hose!

Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.

Čas dobave 3 - 5 dni
14,57 €
Primerjaj z ostalimi
Šifra Navoj Vtič Ø [mm] L [mm] Zaloga Cena Nakup Natisni
108066RIE G 3/4 32 41.0
Čas dobave 3 - 5 dni
4,67 € Natisni
108067RIE G 1 37 50.8
Čas dobave 3 - 5 dni
5,08 € Natisni
108070RIE G 2 63 59.0
Čas dobave 3 - 5 dni
8,13 € Natisni
108069RIE G 1 1/2 53 56.0
Čas dobave 3 - 5 dni
6,58 € Natisni
108072RIE G 3 92 71.7
Čas dobave 3 - 5 dni
14,57 € Natisni
108073RIE G 4 120 71.2
Čas dobave 3 - 5 dni
21,53 € Natisni
108071RIE G 2 1/2 76 79.2
Čas dobave 3 - 5 dni
14,03 € Natisni
108068RIE G 1 1/4 45 55.0
Čas dobave 3 - 5 dni
5,32 € Natisni

Opis

Kamlok quick-connect plug with interior thread, A type, Aluminium, G 3, Plug Ø 92 mm, Pressure max. 16 bar, Temp. max. 68 °C

Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.

A male part and a female part are joined together by shifting the handles.

There is no need to turn the hose!

Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.

Tehnični podatki in specifikacije

Navoj G 3
Max. obratovalni tlak [bar] 16
Vtič Ø [mm] 92
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 68
Tesnilo NBR, resistant to oils and benzine

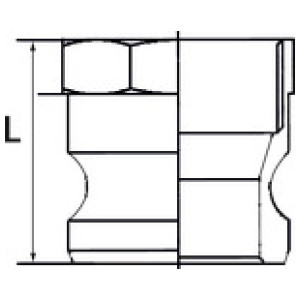

L [mm] 71.7
