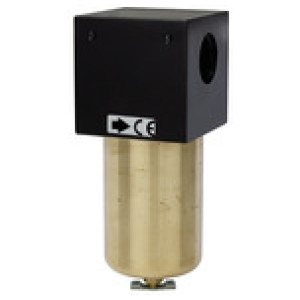

MikroFilter za visoke pritiske do 60 bar, 0.01 µm, G 1
SKU: 101183RIE
EAN: 4047322270373
Microfilter for high pressures up to 60 bar, manual bleeder valve, 0.01 µm, G 1, Brass container, Operating temp. 0 °C to 90 °C
Fine filter for all applications with particularly strict compressed air purity requirements. Micro-filters should always be used in conjunction with a standard filter connected upstream to trap coarse impurities and protect the micro-filter inserts.
Obrestno financiranje
- 10,33 € x 48 mesecev
- 13,20 € x 36 mesecev
- 18,97 € x 24 mesecev
- 36,31 € x 12 mesecev
- 71,02 € x 6 mesecev
- 140,47 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

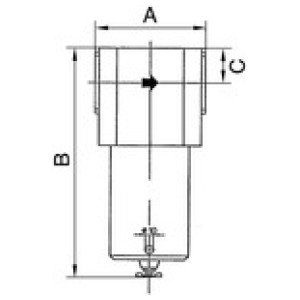

| Šifra | Navoj | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101182RIE | G 3/4 | 29.0 | 92.0 | 196.0 | 2300 | Čas dobave: Predvidoma 3 - 5 dni | 360,91 € |  | |
| 101180RIE | G 3/8 | 25.0 | 73.0 | 187.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 286,85 € | | |
| 101181RIE | G 1/2 | 25.0 | 65.0 | 187.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 309,59 € | | |
| 101183RIE | G 1 | 29.0 | 80.0 | 196.0 | 2300 | Čas dobave: Predvidoma 3 - 5 dni | 387,72 € | |
Opis
Microfilter for high pressures up to 60 bar, manual bleeder valve, 0.01 µm, G 1, Brass container, Operating temp. 0 °C to 90 °C
Fine filter for all applications with particularly strict compressed air purity requirements. Micro-filters should always be used in conjunction with a standard filter connected upstream to trap coarse impurities and protect the micro-filter inserts.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 60 |
| Max. delovna temperatura [°C] | 90 |
| Ohišje | Aluminium |
| Rang filtra [µm] | 0.01 |
| Pretok [l/min] | 2300 |
| Posoda | Brass |
| A [mm] | 80.0 |
| B [mm] | 196.0 |
| C [mm] | 29.0 |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.5 bar |
| Tesnilo | NBR |
| Element filtra | Borosilicate |
| Učinkovitost [%] | 99.9999 |
