Naoljevalnik »G«Kov. pos.Kazalno okenceVel. 600G 1
SKU: 116452RIE
EAN: 4047322308267

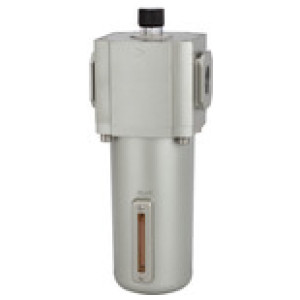

Mist oiler »G«, Metal container, Viewing tube, Mounting bracket, Size 600, G 1, Input pres. max. 10 bar, Working pres. 0.5-9 bar
Proportional lubricators, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Naoljevalnik »G«Kov. pos.Kazalno okenceVel. 600G 1
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Vidna kupola: Brass/POM
D [mm]: 194.5
B [mm]: 256.0
Pretok [l/min]: 10650
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Vidna kupola: Brass/POM
D [mm]: 194.5
B [mm]: 256.0
Pretok [l/min]: 10650
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 116452RIE | G 1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116450RIE | G 3/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mist oiler »G«, Metal container, Viewing tube, Mounting bracket, Size 600, G 1, Input pres. max. 10 bar, Working pres. 0.5-9 bar
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 10 |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 9 |
| Velikost | 600 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vidna kupola | Brass/POM |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Vzmet pokrova motorja | POM |
| Pretok [l/min] | 10650 |
| Posoda | Metal container with viewing tube |

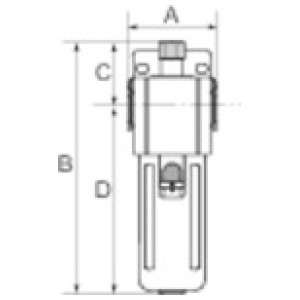

| A [mm] | 85.0 |
| B [mm] | 256.0 |
| C [mm] | 61.5 |
| D [mm] | 194.5 |
| Serija | G |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
