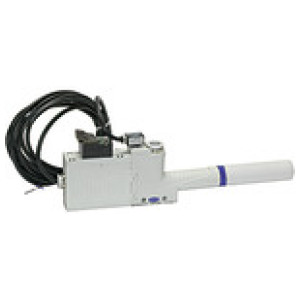

Osn.ejektor SBP-C, izpust. vent., z dušilko, velikost šobe 1 mm
SKU: 108393RIE
EAN: 4047322198875
Basic ejector »SBP-C«, Bleeder valve elec. vacuum switch, Silencer, Nozzle size 1 mm, Compressed air / vacuum connection 6/8 mm
Purely pneumatic vacuum generator that operates on the Venturi principle.

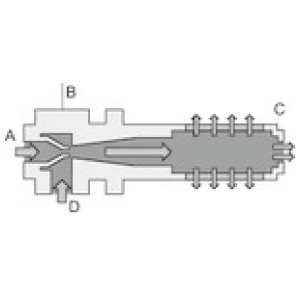

Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with a single nozzle, available in six power ratings, with a high maximum vacuum value (85%)
- Connection of compressed air and vacuum with push-in coupling
- Basic housing with connection facility for a vacuum switch
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- Various power ratings for optimised air consumption
Applications:
- For universal use in handling systems with very high dynamic movements
- Handling all kinds of air-tight components
- For use in separation systems where space is restricted
- Construction of ejector blocks for centralised or decentralised individual control of suction pads
Povpraševanje
Povezava: Push-in coupling
Sistem šobe: Brass
Telo: Plastic (impact-resistant)
Dolžina [mm]: 142.0
| Šifra | Velikost šobe [mm] | Dovod stisnjenega zraka | Dovod vakuuma | Premer [mm] | Višina [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 108393RIE | 1 | 6 mm | 8 mm | 15.0 | 50.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108396RIE | 2.5 | 8 mm | 10 mm | 20.0 | 72.0 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108394RIE | 1.5 | 6 mm | 8 mm | 15.0 | 50.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108395RIE | 2 | 8 mm | 10 mm | 20.0 | 72.0 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Basic ejector »SBP-C«, Bleeder valve elec. vacuum switch, Silencer, Nozzle size 1 mm, Compressed air / vacuum connection 6/8 mm
Purely pneumatic vacuum generator that operates on the Venturi principle.
Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with a single nozzle, available in six power ratings, with a high maximum vacuum value (85%)
- Connection of compressed air and vacuum with push-in coupling
- Basic housing with connection facility for a vacuum switch
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- Various power ratings for optimised air consumption
Applications:
- For universal use in handling systems with very high dynamic movements
- Handling all kinds of air-tight components
- For use in separation systems where space is restricted
- Construction of ejector blocks for centralised or decentralised individual control of suction pads
Tehnični podatki in specifikacije
| Telo | Plastic (impact-resistant) |
| Dušilec | Plastic |
| Velikost šobe [mm] | 1 |
| Povezava | Push-in coupling |
| Dovod stisnjenega zraka | 6 mm |
| Dovod vakuuma | 8 mm |
| Sistem šobe | Brass |
| Položaj sesalnega ventila v mirovanju | NO |
| Dolžina [mm] | 142.0 |
| Premer [mm] | 15.0 |
| Višina [mm] | 50.0 |
