Osn.ejektor SBP-C, izpust. vent., z dušilko, velikost šobe 2 mm
SKU: 108395RIE
EAN: 4047322198929
Basic ejector »SBP-C«, Bleeder valve elec. vacuum switch, Silencer, Nozzle size 2 mm, Compressed air / vacuum connection 8/10 mm
Purely pneumatic vacuum generator that operates on the Venturi principle.

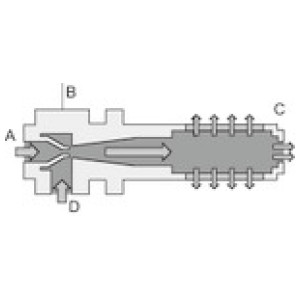

Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with a single nozzle, available in six power ratings, with a high maximum vacuum value (85%)
- Connection of compressed air and vacuum with push-in coupling
- Basic housing with connection facility for a vacuum switch
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- Various power ratings for optimised air consumption
Applications:
- For universal use in handling systems with very high dynamic movements
- Handling all kinds of air-tight components
- For use in separation systems where space is restricted
- Construction of ejector blocks for centralised or decentralised individual control of suction pads
Obrestno financiranje
- 14,49 € x 48 mesecev
- 18,51 € x 36 mesecev
- 26,59 € x 24 mesecev
- 50,90 € x 12 mesecev
- 99,58 € x 6 mesecev
- 196,94 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Velikost šobe [mm] | Dovod stisnjenega zraka | Dovod vakuuma | Premer [mm] | Višina [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
108393RIE | 1 | 6 mm | 8 mm | 15.0 | 50.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | 477,39 € | ||
108396RIE | 2.5 | 8 mm | 10 mm | 20.0 | 72.0 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | 565,35 € | ||
108394RIE | 1.5 | 6 mm | 8 mm | 15.0 | 50.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | 493,67 € | ||
108395RIE | 2 | 8 mm | 10 mm | 20.0 | 72.0 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | 543,66 € |
Opis
Basic ejector »SBP-C«, Bleeder valve elec. vacuum switch, Silencer, Nozzle size 2 mm, Compressed air / vacuum connection 8/10 mm
Purely pneumatic vacuum generator that operates on the Venturi principle.
Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with a single nozzle, available in six power ratings, with a high maximum vacuum value (85%)
- Connection of compressed air and vacuum with push-in coupling
- Basic housing with connection facility for a vacuum switch
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- Various power ratings for optimised air consumption
Applications:
- For universal use in handling systems with very high dynamic movements
- Handling all kinds of air-tight components
- For use in separation systems where space is restricted
- Construction of ejector blocks for centralised or decentralised individual control of suction pads
Tehnični podatki in specifikacije
Telo | Plastic (impact-resistant) |
Dušilec | Plastic |
Velikost šobe [mm] | 2 |
Povezava | Push-in coupling |
Dovod stisnjenega zraka | 8 mm |
Dovod vakuuma | 10 mm |
Sistem šobe | Brass |
Položaj sesalnega ventila v mirovanju | NO |
Dolžina [mm] | 228.0 |
Premer [mm] | 20.0 |
Višina [mm] | 72.0 |
