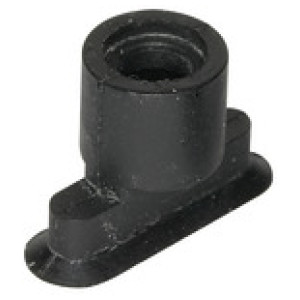

Ploska sesalna šalčka, ovalna, material NBR, »SGO« Ø15x5
SKU: 108475RIE
EAN: 4047322203333
Flat suction cup, oval, Material NBR, »SGO«, Ø15x5 suitable connection nipple IT M5, suitable connection nipple ET M5
Robust and hard-wearing suction pad with a single, oval-shaped sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle long or flat workpieces. Due to its oval shape, it has a considerably higher suction force than round, flat suction pads when handling narrow or long workpieces.
It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Higher suction force for narrow workpieces
- Supports on the bottom
- High suction force in spite of small dimensions
Applications:
- Handling narrow workpieces and strips
- Handling workpieces with only a small, narrow gripping surface
| Šifra | Primerna povezava priključka z notranjim navojem | Primerna povezava priključka z zunanjim navojem | Prostornina [cm³] | Ø notranje cevi [mm] | Min. izbočen polmer krivine [mm] | Višina priključka z notranjim navojem [mm] | Sesalna sila [N] | Višina priključka z zunanjim navojem [mm] | Premer [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 108478RIE | G 1/4 | G 1/4 | 0.980 | 6 | 10 | 26.0 | 28.2 | 36.0 | 45x15 | Čas dobave: Predvidoma 3 - 5 dni | 22,72 € |  | |
| 108474RIE | M3 | - | 0.019 | 2 | 3 | 8.0 | 1 | - | 7x3.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,26 € | | |
| 108476RIE | M5 | M5 | 0.058 | 2 | 4 | 17.0 | 4.5 | 22.0 | 18x6 | Čas dobave: Predvidoma 3 - 5 dni | 16,51 € | | |
| 108477RIE | G 1/8 | G 1/8 | 0.280 | 4 | 8 | 17.0 | 12.2 | 25.0 | 30x10 | Čas dobave: Predvidoma 3 - 5 dni | 22,05 € | | |
| 108475RIE | M5 | M5 | 0.036 | 2 | 4 | 17.0 | 3.1 | 22.0 | 15x5 | Čas dobave: Predvidoma 3 - 5 dni | 16,04 € | |
Opis
Flat suction cup, oval, Material NBR, »SGO«, Ø15x5 suitable connection nipple IT M5, suitable connection nipple ET M5
Robust and hard-wearing suction pad with a single, oval-shaped sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle long or flat workpieces. Due to its oval shape, it has a considerably higher suction force than round, flat suction pads when handling narrow or long workpieces.
It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Higher suction force for narrow workpieces
- Supports on the bottom
- High suction force in spite of small dimensions
Applications:
- Handling narrow workpieces and strips
- Handling workpieces with only a small, narrow gripping surface
Tehnični podatki in specifikacije
| Premer [mm] | 15x5 |
| Sesalna sila [N] | 3.1 |
| Primerna povezava priključka z zunanjim navojem | M5 |
| Primerna povezava priključka z notranjim navojem | M5 |
| Ø notranje cevi [mm] | 2 |
| Višina priključka z notranjim navojem [mm] | 17.0 |
| Prostornina [cm³] | 0.036 |
| Min. izbočen polmer krivine [mm] | 4 |
| Višina priključka z zunanjim navojem [mm] | 22.0 |
