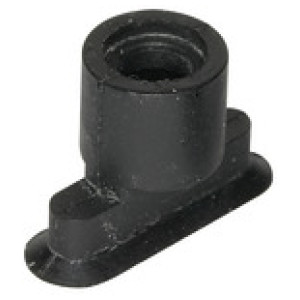

Ploska sesalna šalčka, ovalna, material NBR, »SGO« Ø45x15 slika

* slike so simbolične

Ploska sesalna šalčka, ovalna, material NBR, »SGO« Ø45x15

SKU: 108478RIE
EAN: 4047322203395

Flat suction cup, oval, Material NBR, »SGO«, Ø45x15 suitable connection nipple IT G 1/4, suitable connection nipple ET G 1/4

Robust and hard-wearing suction pad with a single, oval-shaped sealing lip.

Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle long or flat workpieces. Due to its oval shape, it has a considerably higher suction force than round, flat suction pads when handling narrow or long workpieces.

It acts as the connecting element between the vacuum generator and the workpiece.

Properties:

  • Higher suction force for narrow workpieces
  • Supports on the bottom
  • High suction force in spite of small dimensions

Applications:

  • Handling narrow workpieces and strips
  • Handling workpieces with only a small, narrow gripping surface

Čas dobave 3 - 5 dni
22,72 €
Primerjaj z ostalimi
Šifra Primerna povezava priključka z notranjim navojem Primerna povezava priključka z zunanjim navojem Prostornina [cm³] Ø notranje cevi [mm] Min. izbočen polmer krivine [mm] Višina priključka z notranjim navojem [mm] Sesalna sila [N] Višina priključka z zunanjim navojem [mm] Premer [mm] Zaloga Cena Nakup Natisni
108478RIE G 1/4 G 1/4 0.980 6 10 26.0 28.2 36.0 45x15
Čas dobave 3 - 5 dni
22,72 € Natisni
108474RIE M3 - 0.019 2 3 8.0 1 - 7x3.5
Čas dobave 3 - 5 dni
5,26 € Natisni
108476RIE M5 M5 0.058 2 4 17.0 4.5 22.0 18x6
Čas dobave 3 - 5 dni
16,51 € Natisni
108477RIE G 1/8 G 1/8 0.280 4 8 17.0 12.2 25.0 30x10
Čas dobave 3 - 5 dni
22,05 € Natisni
108475RIE M5 M5 0.036 2 4 17.0 3.1 22.0 15x5
Čas dobave 3 - 5 dni
16,04 € Natisni

Opis

Flat suction cup, oval, Material NBR, »SGO«, Ø45x15 suitable connection nipple IT G 1/4, suitable connection nipple ET G 1/4

Robust and hard-wearing suction pad with a single, oval-shaped sealing lip.

Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle long or flat workpieces. Due to its oval shape, it has a considerably higher suction force than round, flat suction pads when handling narrow or long workpieces.

It acts as the connecting element between the vacuum generator and the workpiece.

Properties:

  • Higher suction force for narrow workpieces
  • Supports on the bottom
  • High suction force in spite of small dimensions

Applications:

  • Handling narrow workpieces and strips
  • Handling workpieces with only a small, narrow gripping surface

Tehnični podatki in specifikacije

Premer [mm] 45x15
Sesalna sila [N] 28.2
Primerna povezava priključka z zunanjim navojem G 1/4
Primerna povezava priključka z notranjim navojem G 1/4
Ø notranje cevi [mm] 6
Višina priključka z notranjim navojem [mm] 26.0
Prostornina [cm³] 0.980
Min. izbočen polmer krivine [mm] 10
Višina priključka z zunanjim navojem [mm] 36.0
