Serv. enota 2-delna »G«Kov. pos.5 µmVel. 600G 1
SKU: 116385RIE
EAN: 4047322307710

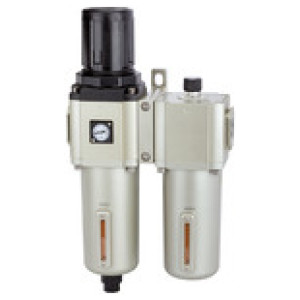

Service unit 2-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 1, Input pressure max. 10 bar, Control range 1.5-9 bar

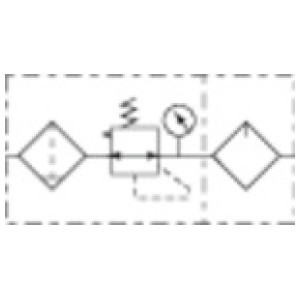

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 12,01 € x 36 mesecev
- 17,26 € x 24 mesecev
- 33,03 € x 12 mesecev
- 64,62 € x 6 mesecev
- 127,80 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Odtok kondenzata | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
116384RIE | G 1 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | 324,69 € | ||
116382RIE | G 3/4 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | 324,69 € | ||
116383RIE | G 3/4 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | 353,09 € | ||
116385RIE | G 1 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | 353,09 € |
Opis
Service unit 2-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 1, Input pressure max. 10 bar, Control range 1.5-9 bar
Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 10 |
Velikost | 600 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Rang filtra [µm] | 5 |
Vidna kupola | Brass/POM |
Max. temperatura medija [°C] | 70 |
Max. sobna temperatura [°C] | 70 |
Vzmet pokrova motorja | POM |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 9 |
Posoda | Metal container with viewing tube |
Pretok [l/min] | 4200 |
Odtok kondenzata | Fully-automatic |

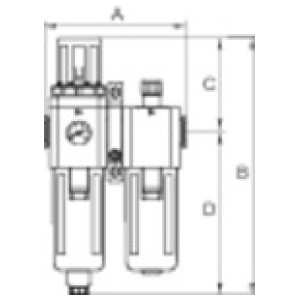

A [mm] | 190.0 |
B [mm] | 363.0 |
C [mm] | 144.0 |
D [mm] | 219.0 |
Serija | G |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
