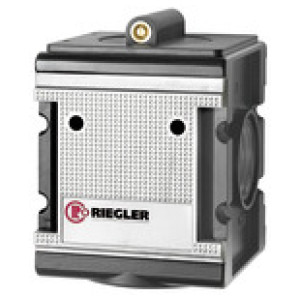

Vklopni ventil »multifix« z nastavljivim gumbom, Velikost 4, G 1
SKU: 133144RIE
EAN: 4047322476331
Start up valve »multifix«, with adjustable throttle, Size 4, G 1, Input pressure 2 - 16 bar, Medium / ambient temp. max. 60 °C

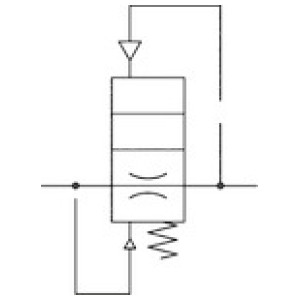

Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Obrestno financiranje
- 10,80 € x 24 mesecev
- 20,68 € x 12 mesecev
- 40,45 € x 6 mesecev
- 80,01 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

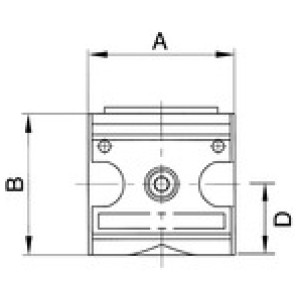

Šifra | Navoj | Ohišje | Velikost | D [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
100628RIE | G 3/4 | Aluminium | 5 | 52.0 | 99.7 | 104.0 | 16000 | Čas dobave: Predvidoma 3 - 5 dni | 262,97 € | ||
100627RIE | G 1/2 | Die-cast zinc | 3 | 35.1 | 68.8 | 71.6 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 74,74 € | ||
100629RIE | G 1 | Aluminium | 5 | 52.0 | 99.7 | 104.0 | 16000 | Čas dobave: Predvidoma 3 - 5 dni | 262,97 € | ||
100626RIE | G 1/4 | Die-cast zinc | 1 | 26.8 | 47.8 | 54.2 | 1100 | Čas dobave: Predvidoma 3 - 5 dni | 69,80 € | ||
133143RIE | G 3/4 | Die-cast aluminium | 4 | 53.0 | 85.0 | 119.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 221,33 € | ||
133144RIE | G 1 | Die-cast aluminium | 4 | 53.0 | 85.0 | 119.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 221,33 € |
Opis
Start up valve »multifix«, with adjustable throttle, Size 4, G 1, Input pressure 2 - 16 bar, Medium / ambient temp. max. 60 °C
Seat valves operated by secondary pressure for controlled pressurisation of pneumatic systems.
The full cross-section of the regulator is opened at 50% of the input pressure.
The filling time can be altered by turning the adjusting screw.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 16 |
Velikost | 4 |
Min. vhodni tlak [bar] | 2 |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 10000 |
A [mm] | 85.0 |
B [mm] | 119.0 |
D [mm] | 53.0 |
Ohišje | Die-cast aluminium |
Serija | multifix |
Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
