* slike so simbolične

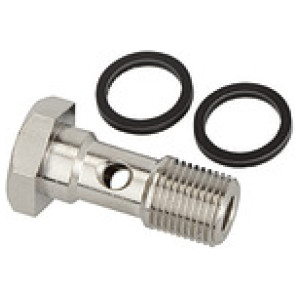

Votli vijak, enotni, M5
SKU: 108822RIE
EAN: 4047322285643
Hollow screw, Single, M5, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
1,39 €
| Šifra | Navoj | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108823RIE | G 1/8 | 14 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € |  | |
| 108825RIE | G 3/8 | 19 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,54 € | | |
| 108824RIE | G 1/4 | 17 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,57 € | | |
| 108822RIE | M5 | 8 | 17.5 | Na zalogi | 1,39 € | |
Opis
Hollow screw, Single, M5, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 70 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | M5 |

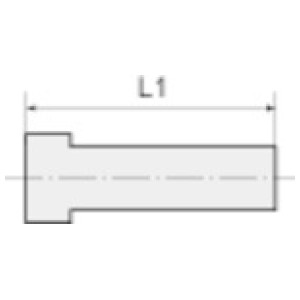

| L1 [mm] | 17.5 |
| a/f [mm] | 8 |
| Material | Nickel-plated brass |
