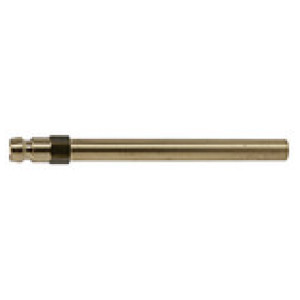

Vtična cev za nastavke DN5Med. 2.0402zunanja cev Ø 8 mmdolž. 9
SKU: 107939RIE
EAN: 4047322258326
Plug nipple pipe DN 5, Brass 2.0401, Pipe exterior Ø 8 mm, AF 9, Operating pressure max. 15 bar, Med./ambient temp. -20°C to 160°C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Povpraševanje
Material: Brass 2.0401
Pritrdilni obroč: Stainless steel
Srednje: Air, water, oil, vacuum
Tesnilo: FPM (PTFE coated)
Vzmet: Stainless steel
Dolžina [mm]: 100.0
| Šifra | O.D. cev [mm] | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107943RIE | 10 | 11 | 240.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107944RIE | 10 | 11 | 360.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107938RIE | 8 | 9 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107942RIE | 10 | 11 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107941RIE | 10 | 11 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107939RIE | 8 | 9 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107940RIE | 10 | 11 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Plug nipple pipe DN 5, Brass 2.0401, Pipe exterior Ø 8 mm, AF 9, Operating pressure max. 15 bar, Med./ambient temp. -20°C to 160°C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 100.0 |
| a/f [mm] | 9 |
| O.D. cev [mm] | 8 |
