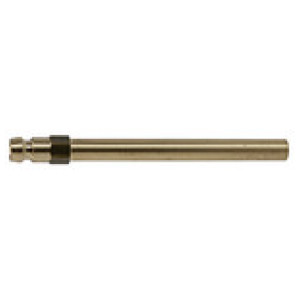

Vtična cev za nastavke DN6Med. 2.0402zunanja cev Ø 10 mmdolž. 11
SKU: 107940RIE
EAN: 4047322258333
Plug nipple pipe DN 6, Brass 2.0401, Pipe exterior Ø 10 mm, AF 11, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
| Šifra | O.D. cev [mm] | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107943RIE | 10 | 11 | 240.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,29 € |  | |
| 107944RIE | 10 | 11 | 360.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,83 € | | |
| 107938RIE | 8 | 9 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,95 € | | |
| 107942RIE | 10 | 11 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,09 € | | |
| 107941RIE | 10 | 11 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,09 € | | |
| 107939RIE | 8 | 9 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,19 € | | |
| 107940RIE | 10 | 11 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | |
Opis
Plug nipple pipe DN 6, Brass 2.0401, Pipe exterior Ø 10 mm, AF 11, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 63.0 |
| a/f [mm] | 11 |
| O.D. cev [mm] | 10 |
