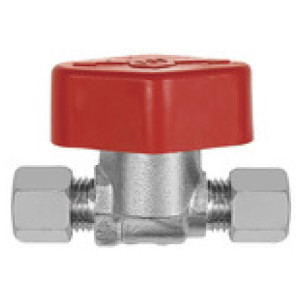

Zaporni ventil na hitri priklop, 12 mm cevni priključek
SKU: 103757RIE
EAN: 4047322054584
Quick connect blocking valve brass chrome plated,DIN 4817,12 mm pipe connec.,DN10,max. 4 bar liquid gas/16bar non-corrosive gases
Čas dobave 3 - 5 dni
Povpraševanje
Zaporni ventil na hitri priklop, 12 mm cevni priključek
Delovni tlak: max. 4 bar / 16 bar (depending on the medium)
DVGW odobritev: DIN 4817-1:1981-04
Kolo: Plastic
O-tesnilo: NBR quality (Perbunan-n), resistant to heating oil
Ohišje: Chrome-plated brass Ms58
Pretok: No information, this depends on the operating pressure and medium
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Steblo: Brass Ms58
Povezava: 12 mm pipe connection
DVGW odobritev: DIN 4817-1:1981-04
Kolo: Plastic
O-tesnilo: NBR quality (Perbunan-n), resistant to heating oil
Ohišje: Chrome-plated brass Ms58
Pretok: No information, this depends on the operating pressure and medium
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Steblo: Brass Ms58
Povezava: 12 mm pipe connection
| Šifra | DN | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 103756RIE | 7 | 10 mm pipe connection | Čas dobave 3 - 5 dni | 38,67 € |  | |
| 103754RIE | 4 | 6 mm pipe connection | Čas dobave 3 - 5 dni | 40,71 € | | |
| 103755RIE | 6 | 8 mm pipe connection | Čas dobave 3 - 5 dni | 35,51 € | | |
| 103752RIE | 8 | G 3/8 male | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103757RIE | 10 | 12 mm pipe connection | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103753RIE | 12 | G 1/2 male | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103758RIE | 12 | 15 mm pipe connection | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103751RIE | 7 | G 1/4 male | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick connect blocking valve brass chrome plated,DIN 4817,12 mm pipe connec.,DN10,max. 4 bar liquid gas/16bar non-corrosive gases
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 60 |
| Steblo | Brass Ms58 |
| Kolo | Plastic |
| Ohišje | Chrome-plated brass Ms58 |
| Pretok | No information, this depends on the operating pressure and medium |
| Povezava | 12 mm pipe connection |
| DVGW odobritev | DIN 4817-1:1981-04 |
| Delovni tlak | max. 4 bar / 16 bar (depending on the medium) |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| DN | 10 |
| O-tesnilo | NBR quality (Perbunan-n), resistant to heating oil |
